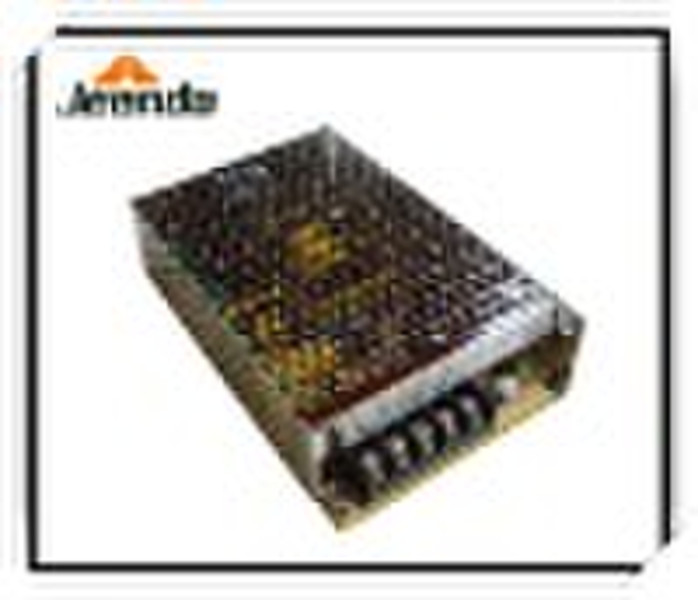

60W single output switching power supply
original price: 7,00 USD
David Zheng
Contact person
Basic Information
| Place of Origin | Zhejiang China (Mainland) |
|---|---|
| Brand Name | Jeenda or OEM |
| Model Number | S-60 |
| Input Voltage | 220V |
| Output Voltage | 5VDC |
| Output Frequency | 47-63HZ |
| Output Current | 12A |
| Output Power | 51 - 100W |
| Output Type | Single |
60W Single outputSwitching power supply Size:159X97X38mm Universal input:85-264VAC Protections:Over load/Over Voltage/Short Circuit Low Power Consumption 100% Full Load High Temperatuure Burn-in Test 2 years Warranty Input Voltage Range 85-264VAC,120-370VDC Input Frequency 47-63HZ Inrush Current Cold Start,25A/115VAC,50A/230VAC Output Adjustment Range +-10% Rated Output Voltage Line Regulation <=0.5% Output Over Load Protection 105%-150% hiccup Mode,Auto-recovery Output OverVoltage Protection 115%-135% Rated Output Voltage Output Short Circuit Protection Hiccup Mode,Auto-recovery Rise,Hold up Time 50ms,20ms at full Load(Typical) Hi-pot IsolationI/P-O/P:3KVAC,I/P-FG:1.5KVAC,O/P-FG:0.5KVAC Operating Temperature Range 0 oC to +45 oC@100%,-10 oC@80%,+60 oC@60% load Storage Temperature Range -40oC to +85oC,0 to 95%RH(Non-Condensing) Cooling Method Free air Cooling Convection Weight 0.51kgs/pcs
Delivery terms and packaging
Packaging Detail: Product packed in inner box, and then packed in standard export outer cartons Delivery Detail: 10 days
Port: Shanghai or Ningbo
